Characteristic Of Rigid-Flex circuit
The use of Rigid-Flex circuit boards can reduce the total cost of the final product.
The rigid-flex circuit is a multilayer printed circuit board with both rigid and flex electric interconnecting layers. The composition of flexible and rigid substrates in a single circuit board creates unique opportunities. The technology allows designers to replace multiple PCBs interconnected with connectors, wires and ribbon cables to create a single circuit board while improving performance and reliability. Furthermore, because rigid-flex circuit PCBs can be bent, folded or twisted, they make an ideal solution for optimizing applications with tight space limitations by using the third dimension.
Embedded Flex “e-Flex”: comparison to HDI/ELIC Rigid-flex circuits.
- Compatible with Rigid PCB stacked vias processing
- Retains dynamic flex, rapid prototyping, and improved panel utilization
- Proprietary technology requiring license and technology transfer limits availability
Rigid-flex circuits board structure and rigid-flex circuits stack up:

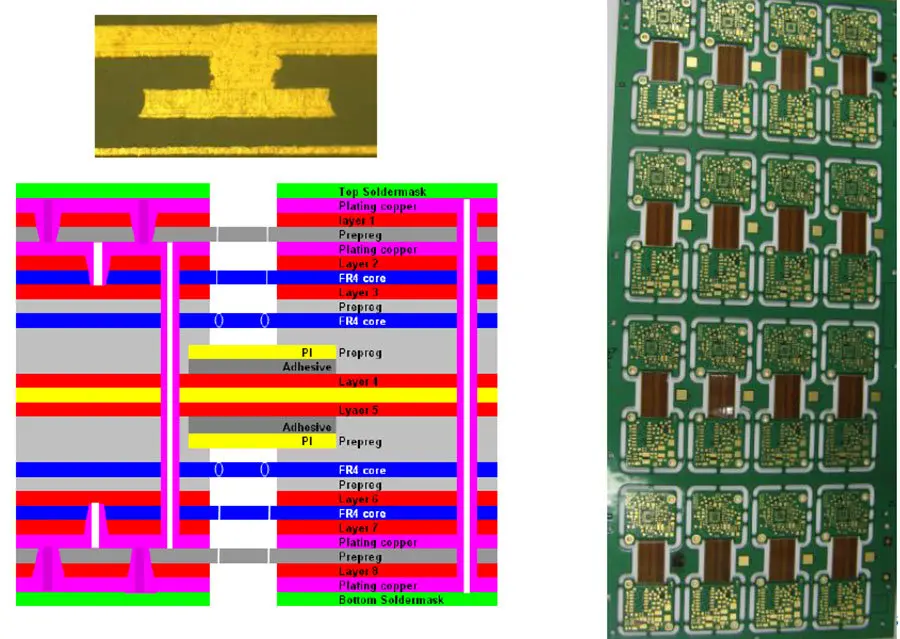

HDI Rigid-flex circuits (1+2+2+2+1) stack up:

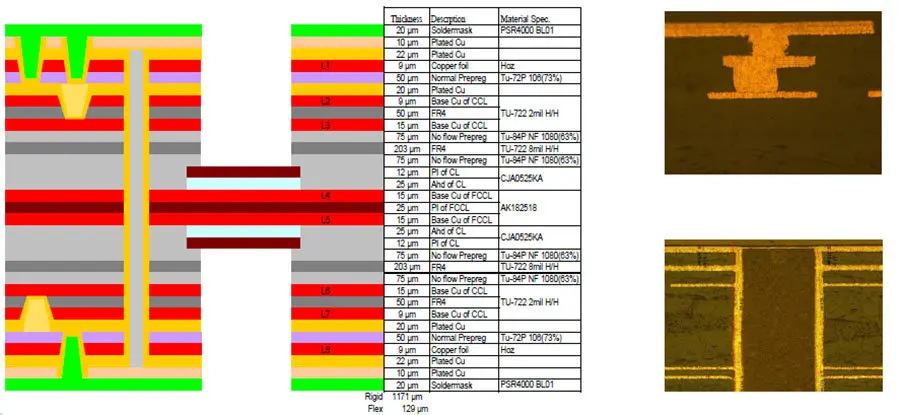

ELIC HDI Micro vias rigid-flex circuits (solid vias) RF stacks up & conventional:
You can find HDI micro vias PCB price up to three deep HDI PCB cost from our PCB calculator system. Of course, you can get three deep rigid-flex circuits PCB price or 24 hours quick turnaround PCB prototype cost from our PCB calculator system. PCB calculator system can also support for your Hot PCB inquiry or urgent PCB RFQ with 24 hours. Maybe our PCB online system or PCB calculate system is not enough intelligent. If you have any questions or need some supports. Please don’t hesitate to contact us or send an email to This email address is being protected from spambots. You need JavaScript enabled to view it..
